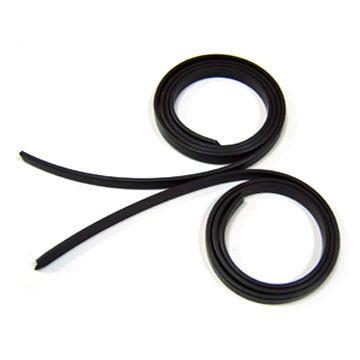

Flexible Fridge Door Magnetic Strip/magnet sheet/magnetic paper
General Description
Flexible Magnetic Strips and Custom Profile are thermoplastic
permanent magnetic Extrusions. High Energy Flexible Magnets strip
are composed of a strontium ferrite powder mixture with polymer
bonding. It can provide superior holding power and widely used in
stationery, household appliance, water-tight
appliance.(Applications Motors, Sensors, Latches, Magnetic
Assemblies, Electronics, Appliances, Holding, Actuators, Seals for
refrigerator gasket) According to its magnetic property, it is
divided into anisotropic and isotropic; according to its
magnetization way, it is divided into surface magnetization and
penetration magnetization (longitudinal, transverse and bilateral).
Features:
1. High resistance to demagnetization compared to standard flexible
magnet material
2. Easy fabrication and handling
3. Free from chipping, cracking or shattering
4. Inexpensive
5. High energy product vs. regular flexible material
6. Adhesive or plain
7. Low curie point, not good in heat applications
Magnetic properties of extruded magnetic strip
| Code | Br | Hcb | Hcj | (BH)max | Forming way | Size |
| T | KA/m | KA/m | KJ/m3 | Max Length (m) | Max Width (mm) | Height (mm) |
| YXZJ-1 | 0.13~0.18 | 80~115 | 100~160 | 4~6.4 | Extrusion | 100 | 400 | 0.4~1.1 |
| YXZJ-2 | 0.18~0.22 | 100~140 | 120~190 | 6.4~8.0 | Extrusion | 200 | 930 | 0.6~3 |
Physical properties of extruded magnetic strip
| Code | Tensile Strength (MPa) | Elongation Rate (%) | Hardness (SHA) | Temperature (°C) | Density (g/cm3) |
| YXZJ-1 | 5~10 | 30~100 | 85~98 | -10~80 | 3.6~3.7 |
| YXZJ-2 | 5~10 | 40~100 | 85~98 | -10~80 | 3.6~3.7 |
We have accumulated abundant experience and established stable and
credible business relationships with customers worldwide. With rich
experience in dealing with all types of large and small orders, we
have developed extensive contacts with many local and international
freight organizations. Consequently, we are able to ship our goods
safely and reliably to almost anywhere in the world.
For more detail info, please feel free to visit our website or
inquire us at any of your convenience.
