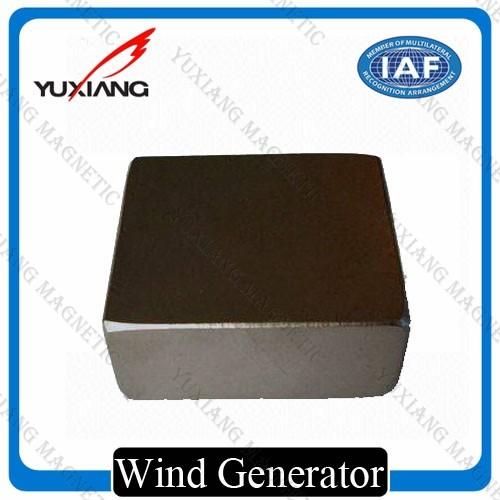

    Industrial Grade Neodymium Block Magnets N35 - N52 / N42SH Axially Magnetized

    Ask Lasest Price
    Brand Name : YuXiang
    Model Number : YXND-50
    Certification : ISO9001
    Price : Negotiated
    Supply Ability : 800Ton/year
    Delivery Time : 15~30 Days After Confirmed Order
    • Product Details
    • Company Profile

    Industrial Grade Neodymium Block Magnets N35 - N52 / N42SH Axially Magnetized

    Block Grade N35,N38,N42,N52 N42SH Magnet Block With Ni, Ni-Cu-Ni, Zn Coating


    Specification


    MaterialSintered Neodymium-Iron-Boron(NdFeB)
    ShapeBlock,Disc,Cylinder, Bar, Ring, Countersunk, Segment,Sphere, Trapezoid, Irregular shapes ,etc
    SizeAs customer required
    Tolerance±0.05mm for diamater/thickness, ±0.1mm for width/length
    GradeN33-N50,33M-48M,33H-48H,30SH-45SH,30UH-40UH,28EH-38Eh,28AH-35AH
    CoatingNi-Cu-Ni,Nickel,Zn,Chrome,exopy,Glod,Copper,Sliver etc.
    MagnetizetionAxially Magnetized, Diametrally Magnetized, Multipoles magnetized,Radial Magnetized
    Max.working Temperature80°C~230°C

    Coating


    SurfaceCoatingThickness (um)ColorResistance
    Passivation0-1Silver GreyTemporary Protection
    NickelNi10-20Bright SilverGood
    ZincZn8-20Bright BlueGood
    C-ZnShinny ColorExcellent
    GoldNi+Cu+Au10-20GoldSuperior
    CopperNi+Cu10-20GoldTemporary Protection
    EpoxyEpoxy15-25Black, Red, GreyExcellent
    Chemical NiNi10-20Silver GreyExcellent
    ParyleneParylene5-20GreyExcellent

    Features:


    1. Attributes of Neodymium


    2. Very high resistance to demagnetization


    3. High energy for size


    4. Good in ambient temperature


    5. Moderately priced


    6. Material is corrosive and should be coated for long term maximum energy output


    7. Low working temperature for heat applications, but higher levels of heat resistance materials are being introduced periodically.


    The complete range of grades is as follows:


    N27, N30, N33, N35, N38, N40, N42, N45, N48, N50, N52, N30M, N33M, N35M, N38M, N40M, N42M, N45M, N48M, N50M, N30H, N33H, N35H, N38H, N40H, N42H, N45H, N48H, N30SH, N33SH, N35SH, N38SH, N40SH, N42SH, N45SH, N28UH, N30UH, N33UH, N35UH, N38UH, N40UH, N28EH, N30EH, N33EH, N35EH, N38EH, N33VH/AH.


    For more detail info, please feel free to visit our website or inquire us at any of your convenience.
