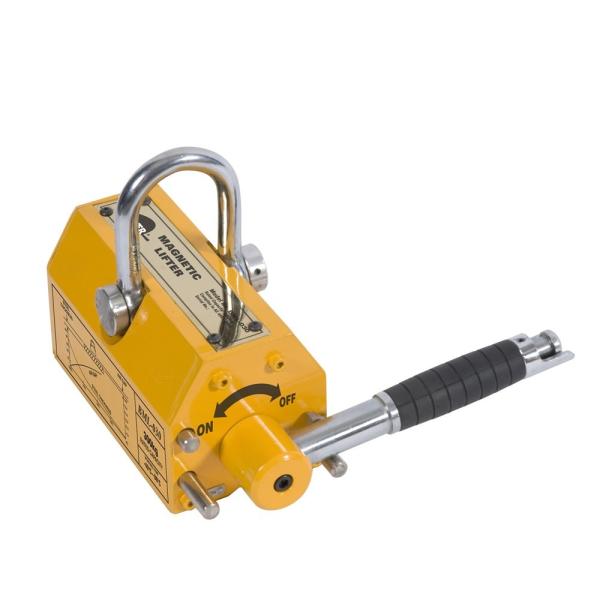

Permanent Magnetic Lifter/magnetic lifter/magnet lifting
General Introduction:
Our permanent magnet lifter made by Ndfeb magnet has strong
magnetic path. On and off of this magnetic path is controlled by
turning the manual handle. The lifters have the features of strong
attraction, smaller volume, lighter weight, powerfull lifting
effort, easy and safe to operate, long-period effort and power
supply is no needed. They can be used to lift and transport the
steel and iron for factories, docks, ware houses, transportations
etc.
Features:
1. Small and most compact
2. No need of electricity and no dangerous from sudden cut off of
elecctricity
3. No damage of contacting surface lifted objects.
4. The position of magnetism on/off switch is secured bu a botton
5. With a V shape slot through the center of hoding surface, both
round and flat steel objects can be lifted
6. Safety factor of all types is 3.5 Minimum
7. Magetic lift has strong magnetic controlled by turning the
manual nozzle. There are shackles on the top of magnetic component
firmly.
Specification:
| Model | Rated Lifting Strength (kg) | Cylindrical lifting strength (kg) | Max pull-off strength (kg) | L (mm) | B (mm) | H (mm) | R (mm) | Operation Temperature °c | Dead Weight (kg) |
| CSYQ-100C | 100 | 50 | 350 | 64 | 92 | 67 | 107 | <80 | 3.0 |
| CSYQ-300C | 300 | 150 | 1050 | 92 | 162 | 91 | 207 | <80 | 7.5 |
| CSYQ-600C | 600 | 300 | 2100 | 122 | 233 | 118 | 247 | <80 | 23.0 |
| CSYQ-1000C | 1000 | 500 | 3500 | 179 | 268 | 164 | 275 | <80 | 55.5 |
| CSYQ-2000C | 2000 | 1000 | 7000 | 234 | 378 | 212 | 370 | <80 | 125.0 |
Application:
Our magnetic lifter mainly used for connecting component and other
magnetic material. They are easy for operattion, safe in handling,
lightly and ingeniously structured. Hence magnetic lifter is widely
used as hoisting devices in factories, docks, ware houses,
transportations industries. By using magnetic lifer, you can
improve your working conditions and increase your working
efficiency.
Magnetic Lifter Structure:
We have accumulated abundant experience and established stable and
credible business relationships with customers worldwide. With rich
experience in dealing with all types of large and small orders, we
have developed extensive contacts with many local and international
freight organizations. Consequently, we are able to ship our goods
safely and reliably to almost anywhere in the world.
For more detail info, please feel free to visit our website or
inquire us at any of your convenience.
