D20*D10*2mm NdFeB Ring Magnet Silver Color N42H Coating Zn Direction Of Texture

    Buy cheap D20*D10*2mm NdFeB Ring Magnet Silver Color N42H Coating Zn Direction Of Texture from wholesalers

    Buy cheap D20*D10*2mm NdFeB Ring Magnet Silver Color N42H Coating Zn Direction Of Texture from wholesalers
    • Buy cheap D20*D10*2mm NdFeB Ring Magnet Silver Color N42H Coating Zn Direction Of Texture from wholesalers
    • Buy cheap D20*D10*2mm NdFeB Ring Magnet Silver Color N42H Coating Zn Direction Of Texture from wholesalers

    D20*D10*2mm NdFeB Ring Magnet Silver Color N42H Coating Zn Direction Of Texture

    Ask Lasest Price
    Brand Name : YuXiang
    Model Number : YXND-63
    Certification : ISO9001
    Price : Negotiated
    • Product Details
    • Company Profile

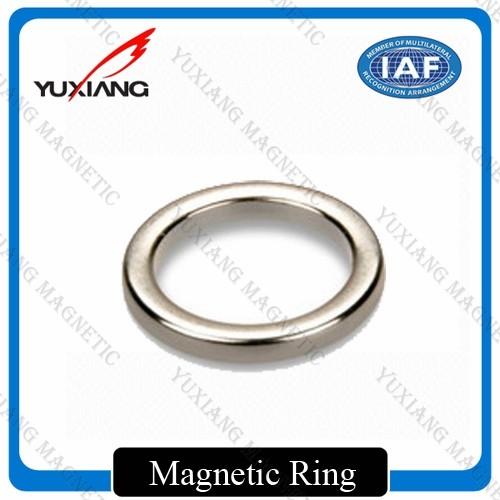

    D20*D10*2mm NdFeB Ring Magnet Silver Color N42H Coating Zn Direction Of Texture

    NdFeB Ring Magnet D20 X D10 X 2mm N42H Coating Zn Direction Of Texture


    Physical Properties of Sintered Neodymium Magnet
    Temp. Coeff. of BrNormal: -0.12%/℃Temp. Coeff. of HcNormal:-0.72~ -0.65%/℃
    Tgrade: -0.11%/℃Tgrade:-0.65~ -0.50%/℃
    LT grade: < -0.10%/℃LT grade: < -0.50%/℃
    Density7.4~7.6g/cm3Electrical Resistivity114 µ Ω . cm
    Vickers hardness600HvThermal Conductivity8.95W/m . k
    Curie Temperature310~340℃Relative recoil permeability µ rev1.05

    Some Coatings of Sintered Neodymium Magnets
    SurfaceCoatingThickness (Microns)ColorResistance
    Passivation1Silver GreyTemporary Protection
    NickelNi+Ni10-20Bright SilverExcellent against Humidity
    Ni+Cu+Ni
    ZincZn8-20Bright BlueGood Against Salt Spray
    C-ZnShinny ColorExcellent Against Salt Spray
    TinNi+Cu+Sn15-20SilverSuperior Against Humidity
    GoldNi+Cu+Au10-20GoldSuperior Against Humidity
    CopperNi+Cu10-20GoldTemporary Protection
    EpoxyEpoxy15-25

    Black

    Red

    Grey

    Excellent Against Humidity & Salt Spray
    Ni+Cu+Epoxy
    Zn+Epoxy
    ChemicalNi10-20Silver GreyExcellent Against Humidity
    ParyleneParylene5-20Grey

    Excellent Against Humidity, Salt Spray.

    Superior Against Solvents, Gases,

    Fungi and Bacteria.


    We have accumulated abundant experience and established stable and credible business relationships with customers worldwide. With rich experience in dealing with all types of large and small orders, we have developed extensive contacts with many local and international freight organizations. Consequently, we are able to ship our goods safely and reliably to almost anywhere in the world.


    For more detail info, please feel free to visit our website or inquire us at any of your convenience.
