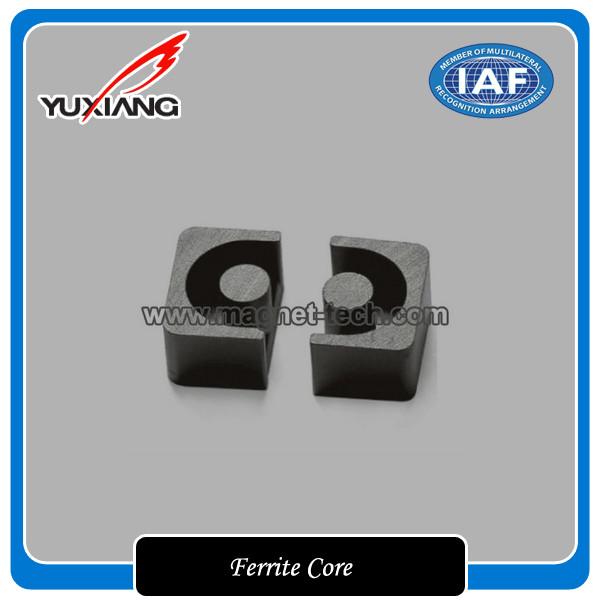

We supply high permeability EP ferrite core made by MnZn ferrite or
NiZn ferrite material.
Features:
1. EP Cores are round center-post cubical shapes, which enclose the
coil completely. This particular shape minimizes the effect of air
gaps formed at mating surfaces in the magnetic path and provides a
larger volume ratio to total space used. Shielding is excellent.
2. Special advantages of ferite EP core assemblies: wide core
selection like; high packaging density on PCBs; choice of linear or
flat temperature characteristics; consistency and uniformity
Technical Parameters
Type
Core parameter
Weight (g/pr.)
AL(Nh/N2)(+/-30%)
C1
(mm-1)
Ae
(mm2)
Ie
(mm)
Ve
(mm3)
F7
Pc (W)
EP7
1.52
10.3
15.7
163
1.4
3640
4200
EP7A
1.52
10.3
15.7
162
1.4
3600
5200
EP10
1.7
11.3
19.2
218
2.8
3360
3860
EP10A
1.7
11.3
19.2
217
2.8
3300
4700
EP13
1.24
19.6
24.2
476
5.2
4200
5600
EP13A
1.24
19.5
24.2
472
5.1
4900
7000
EP17
0.84
33.9
28.5
966
12
/
8000
EP17A
0.84
33.9
28.5
966
12
8850
12650
EP20
0.51
78
39.8
3120
28
/
13500
EP20A
0.508
78
39.8
3120
28
19500
19350
EP30
0.351
179
11200
11200
75
Applications:
High permeability EP-core can be used as EMI filter core, choke
coil core, power inductor core and for telecommunication like xDSL
modem transformers.
We have accumulated abundant experience and established stable and
credible business relationships with customers worldwide. With rich
experience in dealing with all types of large and small orders, we
have developed extensive contacts with many local and international
freight organizations. Consequently, we are able to ship our goods
safely and reliably to almost anywhere in the world
For more detail info, please feel free to visit our website or
inquire us at any of your convenience.
